034Motorsport Street Density Motor Mounts (10-13 A3 TDI, 10-14 Golf TDI, 09-15 Jetta TDI)

Be the first to Write a Review
$255.00
Be the first to Write a Review
FREE Shipping
SKU: 110196
MPN: 034-509-5024-SD
Currently unavailable

Product Details

Description

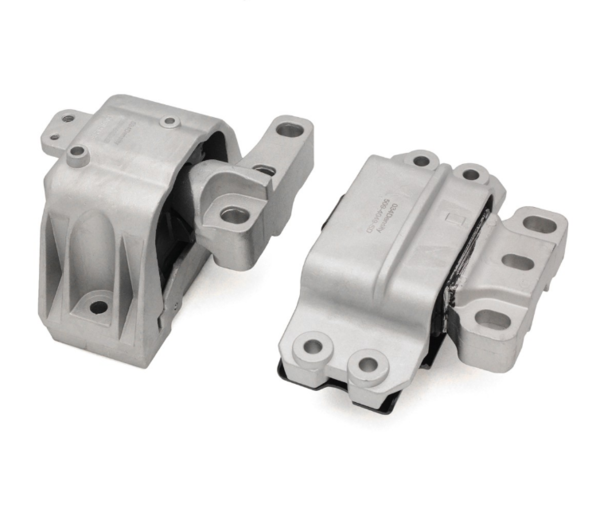

We're proud to announce the availability of the Density Line Engine Mount Pair for MkV/MkVI Volkswagen Golf/Jetta & 8P Audi A3 2.0 TDI models!

034Motorsport's Density Line Mounts are the new standard in comfort and performance. Our mounts are redesigned with performance in mind, and manufactured from high-durometer rubber for increased performance and durability, without sacrificing comfort. Density Line Mounts are void-free and fluid-free, eliminating the slop associated with the factory mounts.

Street Density:

The Street Density Engine Mount Pair is manufactured from 60 durometer rubber, which is approximately 35% stiffer than stock. Since the mounts are also void-free and solid-filled, the resulting mount is approximately 60% stiffer than stock. The cast aluminum mount bodies have also been redesigned to cope with the added stress of spirited driving.

The result is greatly reduced drivetrain slop, crisper shifting, and minimal wheel hop, without any significant increase in noise, vibration, or harshness (NVH) inside of the cabin. These mounts are a completely re-engineered performance solution, not just inserts for use with the factory mounts.

Replaces:

  • 1K0199262AM / 1K0 199 262AM
  • 1K0199555Q / 1K0 199 555Q
  • 1K0199555R / 1K0 199 555R
Factory Engine Mounts vs. Density Line Engine Mounts

High-Durometer Rubber vs. Polyurethane:

Density Line Mounts are manufactured from high-durometer rubber instead of polyurethane for a number of reasons. While vulcanized rubber mounts are more expensive to prototype due to increased complexity of manufacturing and high initial tooling costs, rubber is inherently better than polyurethane as a damping medium for mounts and bushings.

Rubber is able to deal with stress under both tension and compression, while polyurethane mounts rely on the damping medium to be effective only under compression. Rubber is also excellent in shear, where polyurethane is ineffective, making it ideal for control arm bushings that apply a shear force to the bushing during articulation.

Rubber does not pack and wear like polyurethane does, which ultimately results in a long-lasting part with consistent performance and comfort.

These mounts are currently available in Street Density only.

Product Features

  • Manufactured from 60 Durometer (Street Density) Rubber with Void-Free Construction
  • Reduced Drivetrain Slop
  • Decreased Engine Movement Under Load
  • More Direct Power Transfer
  • Improved Shifting Feel
  • Complete Drop-In Replacement of Factory Engine/Transmission Mounts
  • Sold in Pairs (One Engine Mount  & One Transmission Mount)

warranty

1 Year Limited Warranty

Warranty on 034Motorsport Products: It is the intention of 034Motorsport to sell only quality products. We offer a 1-year warranty against defects in workmanship or materials, not extending to normal tear and wear or mis-use. You must provide us with a proof of purchase, defect or the result of wear or mis-use. Some products have less than 1-year warranty. Please inquire before ordering.

Return Shipping: 034Motorsport is not responsible for shipping costs associated with warranty claims, the customer is responsible for covering shipping costs to and from 034Motorsport, even in the event that a part is warrantied or deemed defective and replaced. Warranty claims in most cases require parts to be returned to 034Motorsport to be inspected, once we determine the cause of the defect is from manufacturing and not from wear or mis-use, the warranty process can begin. In rare cases we can confirm the warranty claim via picture or video, especially if the failure is a known, documented issue.

Warranty Policy: 034Motorsport will only replace or repair warranty items. No refunds will be given. 034Motorsport or the product manufacturer will inspect or test all products prior to a warranty claim adjustment. This process may take up to 6 weeks. You must obtain an RMA number from either Customer Service or Technical Support prior to any return. All products we offer are warranted to be free from defects prior to installation. Any modification or improper use voids this warranty. This warranty does not cover installation. 034Motorsport shall be the final arbitrator in interpreting the extent and remedy of warranty.

Second-Hand Products: 034Motorsport warranties are not transferrable, and available to the original purchaser only, however if you do buy a 034Motorsport part second hand and have a problem with it, do contact us as we can typically arrive at a reasonable, fair solution.

Our Liability: 034Motorsport, its partners or affiliates shall not be liable for any consequential, incidental and contingent damages arising from, but not limited to, the sale, transportation, installation, use or repair of its products. Customer shall be responsible in selecting a reputable installer with current liability insurance to cover any damage that may arise through installation of 034Motorsport products and/or your vehicle. 034Motorsport's listing and any recommendation of facilities shall not constitute as a ground for any liability. Notwithstanding any other provision of this agreement, 034Motorsport's maximum combined liability shall be limited to the payments made by the facilitator under this agreement for the specific product that caused the alleged damages.

Fitment Guide

Does this fit my vehicle?
Fitment Guide
×

Fitment Guide

Start Year End Year Make Model Submodel Cyl Lit Fuel FuelDel ASP EngDesg Notes
2010 2013 AUDI A3 TDI L4 2.0 DIESEL FI T ALL
2010 2014 VOLKSWAGEN GOLF TDI L4 2.0 DIESEL FI T ALL
2009 2015 VOLKSWAGEN JETTA TDI
TDI CUP EDITION
TDI PREMIUM
TDI S
TDI SE
TDI SEL
L4 2.0 DIESEL FI T ALL

Customer Reviews

No reviews have been written for this product.
Write a Review
