APR Open Carbon Fiber Intake System - 1.8T/2.0T MQB

LOWEST PRICE GUARANTEED
$486.95
$542.00
You Save $55.05
FREE Shipping
SKU: 113219
MPN: CI100040

Product Details

Description

The APR Open Carbon Fiber Intake System is the ultimate intake system for the 1.8T/2.0T Engine! They have maximized performance and sound dramatically by reducing pressure drop and increasing airflow. This translates to more horsepower and torque, and less physical strain on the turbocharger. The system looks great, sounds amazing, and produces more horsepower and torque you can feel.

Their beautiful carbon fiber intake system does away with the closed airbox design and uses a massive 7" washable and reusable cotton filter with a frontal inlet and 4" rear outlet. This was necessary to limit pressure drop across the factory system and maximize airflow while allowing you to fully hear the engine breathe! The massive filter provides excellent filtration. By oversizing the filter, APR is able to limit pressure drop without sacrificing filtration. This is made possible through the use of a greatly increased filter surface area. Carbon fiber not only looks great, but it allows us to make a complex and organic heat shield shape that keeps hot air pushed through the frontal radiator away from the intake tract. Furthermore, carbon fiber allows APR to limit wall thickness on the intake pipe, maximizing the pipe's internal diameter and thus airflow. Lastly, carbon fiber retains heat less than other materials, such as metal, making it ideal for performance.

Flow Bench and Power Testing

The factory intake system simply can’t match the performance of our intake system. The full factory frontal airbox only flows 521 CFM at 28” of H2O. They improved this by 60% with their open airbox, which flows 833 CFM by comparison!

However, it’s important to always look at the intake system as a whole as flow numbers alone don’t always speak to the broader picture. The factory turbocharger can only flow just under 400 CFM through the factory opening, and an intake system will lessen the maximum flow.

The goal is to minimize all restrictions before the turbocharger as much as possible to maximize performance. The full factory system brings this down to 275 CFM, or 31% less.

The full APR System (Open airbox, rear pipe, and turbo inlet pipe), bring this down to 345 CFM, which is only 13% less, or a 25% improvement over stock!

This directly translates to more power you can feel. Our full bolt-on APR Tuned S3 saw max gains of 12 AWHP and 13 AWFT-LBS of torque using the full intake system compared to stock! These are solid gains that make a noticeable difference in performance!

Product Features

  • More horsepower with gains up to +12 AWHP over stock
  • More torque with gains of up to +13 AWFT-LBS over stock
  • Greatly outflows the full factory frontal airbox by 60% at 833 CFM vs 521 CFM
  • Beautiful and functional carbon fiber heat shield
  • Thin-walled carbon fiber inlet pipes for maximum airflow through a larger internal ID
  • Massive 7” washable and reusable cotton filter with a frontal inlet and 4” rear outlet
  • Creates an intoxicating intake sound in the engine bay
  • Improves throttle response
  • Lessens pressure drop
  • Lessens strain on the turbocharger
  • Lessens heat retention compared to other materials, such as metal
  • Compatible with APR and factory rear intake tubes and turbo inlet pipes
  • Easily installs in minutes

installation

Click Here For Installation Instructions

Note: Models with Secondary Air Injection (SAI) require a breather filter (CI100020-A). This intake is not designed to fit EA888 Gen 3B engines that feature a MAF sensor on the intake tube. This system is not compatible with the MS100100 intake mounted Catch Can System.

warranty

Warranted To Be Free From Defects Prior To Installation

For any questions regarding you APR warranty email [email protected]

Fitment Guide

Does this fit my vehicle?

Fitment Guide
Start Year End Year Make Model Submodel Cyl Lit Fuel FuelDel ASP EngDesg Notes
2015 2016 AUDI A3 CABRIOLET PREMIUM
CABRIOLET PREMIUM PLUS
CABRIOLET PRESTIGE
PREMIUM
PREMIUM PLUS
PRESTIGE
L4 1.8 GAS FI T ALL
2015 2020 AUDI A3 QUATTRO CABRIOLET PREMIUM
CABRIOLET PREMIUM PLUS
CABRIOLET PRESTIGE
PREMIUM
PREMIUM PLUS
PRESTIGE
L4 2.0 GAS FI T ALL
2019 2020 AUDI Q3 QUATTRO PREMIUM
PREMIUM PLUS
PRESTIGE
S-LINE PREMIUM
S-LINE PREMIUM PLUS
L4 2.0 GAS FI T ALL Does not fit vehicles with Gen3-B engines with MAF sensor on the intake tube.
2015 2020 AUDI S3 ALL ALL ALL ALL ALL ALL ALL
2016 2023 AUDI TT QUATTRO BASE
COUPE
ROADSTER
S
L4 2.0 GAS FI T ALL
2019 2021 VOLKSWAGEN ARTEON SE
SE 4MOTION
SEL 4MOTION
SEL PREMIUM R-LINE 4MOTION
SEL R-LINE
SEL R-LINE 4MOTION
L4 2.0 GAS FI T ALL
2015 2019 VOLKSWAGEN GOLF R ALL ALL ALL ALL ALL ALL
2017 2019 VOLKSWAGEN GOLF ALLTRACK ALL ALL ALL ALL ALL ALL ALL
2015 2019 VOLKSWAGEN GOLF SPORTWAGEN S
SE
SEL
L4 1.8 GAS FI T ALL
2017 2019 VOLKSWAGEN GOLF SPORTWAGEN S 4MOTION L4 1.8 GAS FI T ALL
2015 2021 VOLKSWAGEN GTI ALL ALL ALL ALL ALL ALL ALL
2019 2023 VOLKSWAGEN JETTA GLI S
GLI 35TH ANNIVERSARY EDITION
GLI AUTOBAHN
ALL ALL ALL ALL ALL ALL

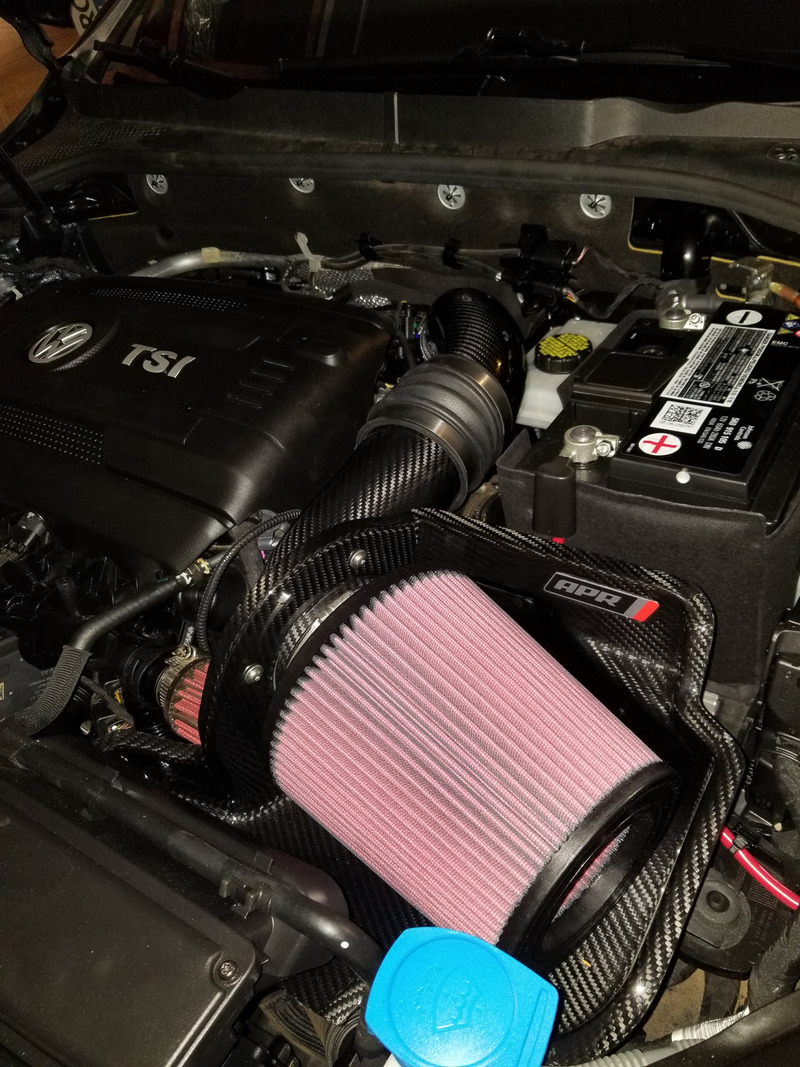

Customer Pictures
