Neuspeed Power Module (14-18 Jetta 1.8T, 14-17 Passat 1.8T)

$379.95
$399.95
You Save $20.00
FREE Shipping
SKU: 106254
MPN: 64.10.14

Product Details

Description

NOTE: When increasing turbo boost on the 1.8 TSI or 2.0 TSI engines the P-Flo Intake and Hi-Flo Discharge Pipe are recommended.

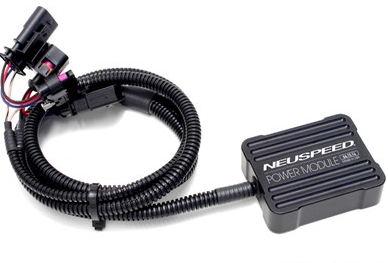

NEUSPEED Power Module is a device which easily allows anybody to upgrade the performance of their 1.8 TSI and 2.0 TSI (Gen 2.5 or Gen3 engine) without reducing the reliability or integrity of the engine, clutch and driveline. This is the simplest and best alternative or option to chip tuning. The NEUSPEED Power Module is an all new design, not some rebranded 3rd party product. It is a plug and play box that intercepts at the MAP and Boost sensors and can be installed or removed within minutes without any detection. There is a convenient two position switch for premium fuel and 100+ octane race fuel for maximum HP output. The electrical components are housed in a billet aluminum enclosure which is protected from the elements and is designed and manufactured to be positioned within the engine bay of your vehicle. The wire harness is manufactured using automotive quality wiring which is both oil and heat resistant, and has the same OE water proof connectors as used on your engine.

Two position switch:

  • Premium Fuel / 4 PSI Increase
  • 100+ Octane Fuel / 6 PSI Increase

Power / Torque Gain: (Numbers Below are on 93 Octane)

  • 1.8 TSI: 35+ HP /  35 ft./lbs.Torque
  • 2.0 TSI: 40+ HP /  40 ft/lbs.Torque

Readings in the vacuum region are stock

  • No effect on cold start
  • No effect on warm-up
  • No change to idle, cruise and moderate acceleration modes of operation

Retains stock ECU programming

  • No change to factory ECU programming, communication or safety protocols
  • No ECU TD1 code to void manufactures warranty
  • Not effected by ECU reprogramming by the dealer
  • Makes use of existing ECU programming for higher boost levels
  • Correct fuel and timing is maintained

IMPORTANT:

  • DO NOT USE POWER MODULE IF ECU HAS BEEN TUNED OR MODIFIED, RE-FLASH BACK TO ORIGINAL SOFTWARE.
  • STOCK DIVERTER VALVE REQUIRED, NO AFTERMARKET
Product Features

  • Used with Premium (91-94 Octane) & Race (100+ Octane) Gas
  • 40+ Hp on 2.0 TSI (Using 93 octane)
  • Increases boost by modifying the charge pressure and map sensor readings.
  • Allows ECU to remain in control of boost
  • The actual boost is increased by a precise amount
  • Boost is increased in a gradual, progressive fashion
  • Uses the closed loop control of the ECU to increase boost

installation

 Easy Installation

  • Plug-and-play intercept at Boost and MAP sensor connector locations
  • Installation or removal can be completed in a few minutes
  • No trace Power Module was ever there after removal

Installation Instructions can be found HERE

warranty

As your assurance of the quality of its Products, Automotive Performance Systems, Inc. ("APS"), offers the following limited warranty, applicable in the U.S.A. and Canada only:

Limited Warranty. APS warrants to the original retail purchaser who retains ownership of the vehicle on which the Product was originally installed (the “Consumer”) all of its Neuspeed products. Standard APS products carry a 1 year warranty against manufacturing and/or material defects, unless stated otherwise on individual product listing on this website.

Exclusions from Warranty. This warranty shall not apply to any Product that was not properly installed by a qualified, licensed auto mechanic experienced in the installation of the Product purchased, any Product that was improperly serviced, or any Product that was misused or damaged (if such damage did not result from a Product defect or malfunction). This warranty shall not apply unless the Consumer promptly discontinues use of the Product upon discovery of the defect or premature wearing.

THIS WARRANTY DOES NOT APPLY TO ANY PRODUCT THAT HAS BEEN: (1) MODIFIED, ALTERED OR SUBJECTED TO ABUSE, NEGLIGENCE, ACCIDENT OR COLLISION; (2) IMPROPERLY INSTALLED ON ANY VEHICLE FOR WHICH IT WAS NOT DESIGNED; (3) INSTALLED ON ANY VEHICLE THAT HAS BEEN MODIFIED; (4) INSTALLED ON ANY VEHICLE THAT HAS CARRIED LOADS IN EXCESS OF THE AUTOMOBILE MANUFACTURER’S SUGGESTED WEIGHT LIMITS; (5) INSTALLED ON ANY VEHICLE THAT HAS BEEN USED FOR RALLYING, RACING, RACING-TYPE ACTIVITIES OR OFF-ROAD USE; OR (5) PRESENTED FOR WARRANTY COVERAGE AFTER BEING USED ON A VEHICLE OTHER THAN THE VEHICLE ON WHICH IT WAS ORIGINALLY INSTALLED.

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE), THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. ANY IMPLIED WARRANTIES ARE DISCLAIMED TO THE FULLEST EXTENT PERMITTED BY LAW. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL APS, ITS DIVISIONS, EMPLOYEES, AND AFFILIATES BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST PROFITS, LOSS OF USE OF VEHICLE, REVENUE, SALES, OR COSTS OF PROCUREMENT OF SUBSTITUTE GOODS, PROPERTY DAMAGE, INCLUDING WITHOUT LIMITATION DAMAGE TO VEHICLE OR COMPONENT PARTS, PERSONAL INJURY, INTERRUPTION OF BUSINESS, OR FOR ANY DIRECT, INDIRECT, INCIDENTAL, ECONOMIC, COVER, AND PUNITIVE DAMAGES, RESULTING FROM POSSESSION, USE OR MALFUNCTION OF THE PRODUCT, EVEN IF APS HAS BEEN ADVISED OF THE POSSIBILITY OF THOSE DAMAGES. SOME STATES DO NOT PERMIT THE EXCLUSION OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TO THE EXTENT THAT A STATE DOES NOT ALLOW AN EXCLUSION OF LIABILITY BUT ALLOWS A LIABILITY TO BE LIMITED, THE LIABILITY OF APS, ITS DIVISIONS, EMPLOYEES AND AFFILIATES SHALL BE LIMITED TO THE PURCHASE PRICE OF THE PRODUCT.

THIS WARRANTY GIVES THE CONSUMER SPECIFIC LEGAL RIGHTS. THE CONSUMER MAY HAVE ADDITIONAL RIGHTS THAT MAY VARY FROM STATE TO STATE.

This warranty information and the specific warranty information included with the Product constitutes the entire agreement between APS and Consumer and exclusively determines the rights and obligations of the parties, any prior course of dealing, custom or usage of trade, or course of performance notwithstanding, and supercedes all prior agreements and understandings, whether oral or written.

Fitment Guide

Does this fit my vehicle?
Fitment Guide
×

Fitment Guide

Start Year End Year Make Model Submodel Cyl Lit Fuel FuelDel ASP EngDesg Notes
2014 2018 VOLKSWAGEN JETTA SE
SE SPORT
SEL
SEL PREMIUM
SPORT
L4 1.8 GAS FI T CPKA
CPRA

2014 2017 VOLKSWAGEN PASSAT R-LINE
S
SE
SEL
SEL PREMIUM
SPORT
WOLFSBURG EDITION
L4 1.8 GAS FI T CPKA
CPRA


Customer Reviews

5 / 5 Avg. Rating
Write a Review
  • Seriously?

    Easiest, simplest, most effective bolt on mod available. Highly recommended.

  • Installer

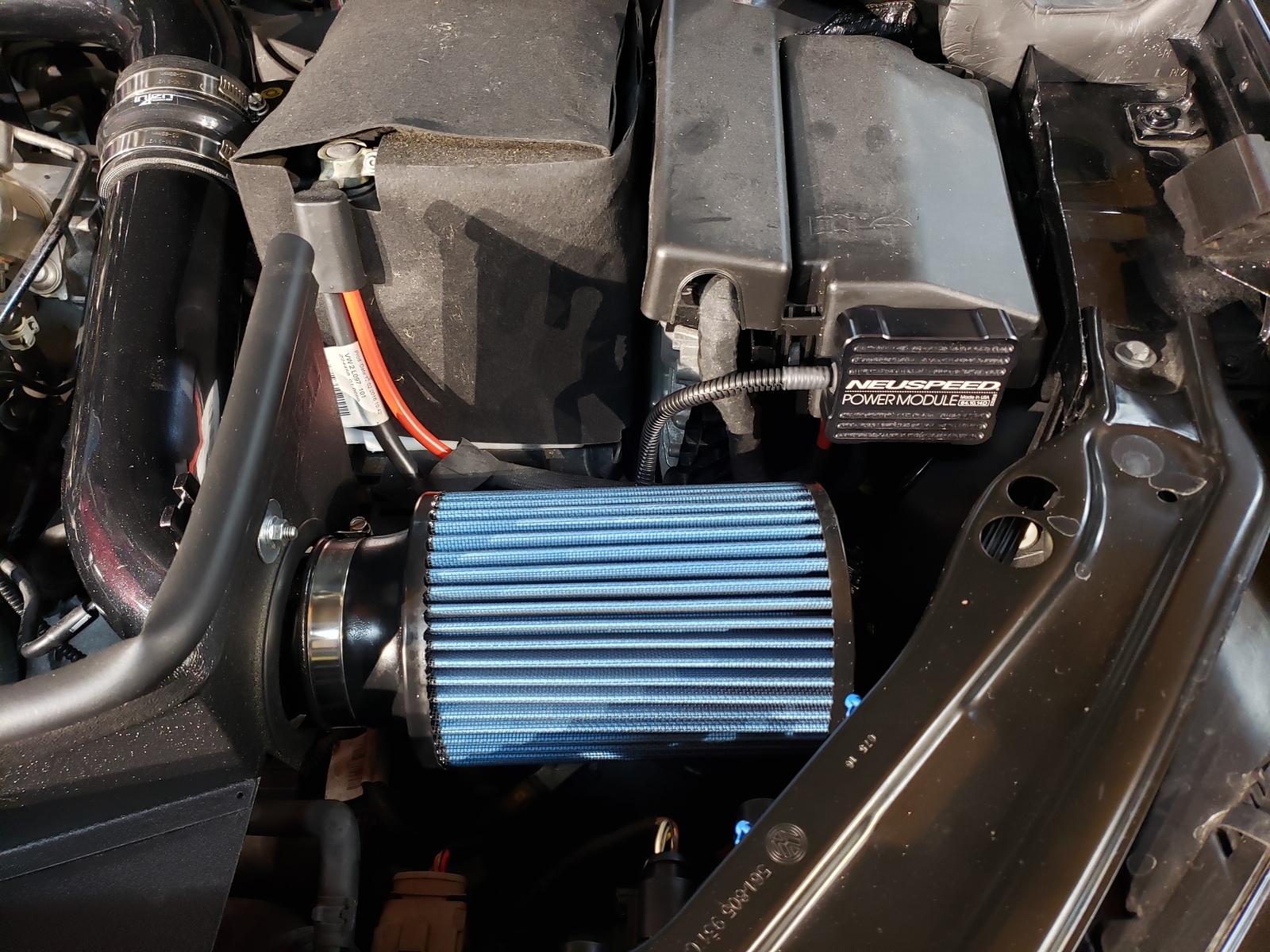

    Power gain was instant for my 2017 Passat R Line 1.8 TSI. Install took ten minutes. I also installed a K&N performance air filter that gave about 3 to 5 horse power before installing the Neuspeed power booster. I did notice that the K&N raised my idle at start up. But it does come down to normal.

    The engine has a very noticeable power gain from a dead stop, and no issues during Acceleration. Now I can pass slower cars while climbing steep hills.

  • 2014 VW Jetta SE 1.8 TSI

    Works great ! highly recommend !!!

  • This is just great been running if for a couple weeks now and made a great difference

  • This mod is probably the biggest bang for your buck extremely easy to install and also knocks your socks off

  • Real quick power

    I'm very impressed with this module. Hardest thing about the installation was the removal of the stock intake assembly to reach the boost sensor. After the 1st 20 miles the engine came alive! I was planning on going Stage 2 with my car but I might delay that idea. This is plenty of power for me rt now.

  • elyssa1

    Took me less than 10 mins to install with noticeable increase in power on 93 octane before 20 miles

  • This thing is wicked cool!

    I purchased the Neuspeed module through a friend's stereo shop. Ordered in the late afternoon, and lo and behold, it showed up in the shop the VERY NEXT DAY! So that's a star for Modded Euros, free shipping. Awesome.

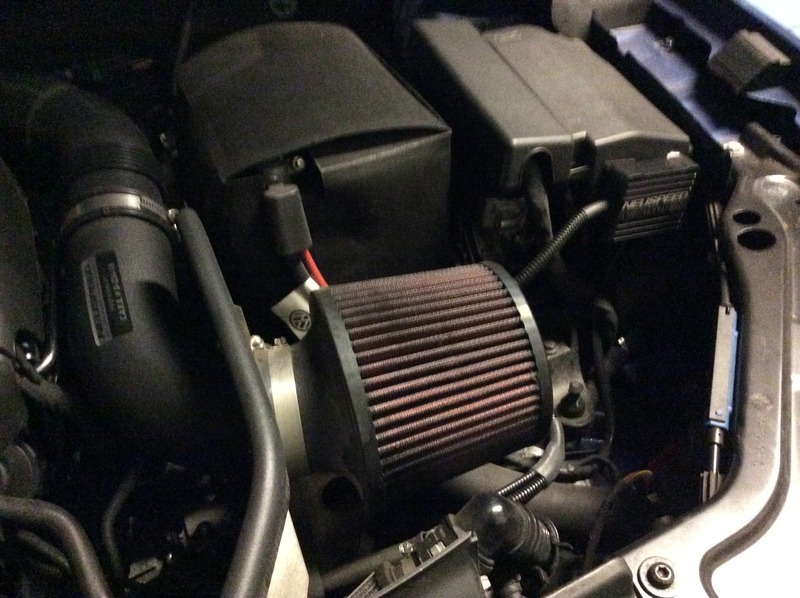

    The installation was rather simple, 2016 Beetle 1.8t. Drove about 20 miles at normal rates, and then holy crap, this thing moves. Remember, it's just a beetle, but it's a joy to drive. I find myself tripping the traction control (automatic) during takeoff from corners (like out of driveways). I've had it for less than a week, so I'll come back here and re-review after it's been a few thousand miles.

    For what it's worth, I'm happy with the immediate results.

  • Gotta love more power in my GLI. Thanks!

  • Pretty sweet mod. Easy to install and does exactly what it says, gave my GLI some more power.
