Neuspeed Power Module (15+ A3/S3, 15+ GTI/Golf/Golf R, 16+ TTS,17+ A4, 18+ A5)

$379.95
$399.95
You Save $20.00
FREE Shipping
SKU: 106983
MPN: 64.10.15
...

Product Details

Description

The NEUSPEED Power Module is a device which easily allows most people to upgrade the performance of their 2014-up Audi A3 1.8/2.0 TSI (8V Gen3 engine) or 2015-up MK7 GTI 2.0 TSI (Gen3 engine) without reducing the reliability or integrity of the engine, clutch and driveline.

This is the simplest and best alternative or option to chip tuning.

The NEUSPEED Power Module is an all new design, not some rebranded 3rd party product.

It is a plug and play box that intercepts at the MAP and Boost sensors and can be installed or removed within minutes without any detection.

There is a convenient two position switch for 91+ premium fuel and 100+ octane race fuel for maximum HP output.

The electrical components are housed in a billet aluminum enclosure which is protected from the elements and is designed and manufactured to be positioned within the engine bay of your vehicle.

The wire harness is manufactured using automotive quality wiring which is both oil and heat resistant, and has the same OE water proof connectors as used on your engine.

NEUSPEED Power Module's are designed, engineered and tuned for a specific engine, not a generic box.

IMPORTANT:

  • DO NOT USE POWER MODULE IF ECU HAS BEEN TUNED OR MODIFIED, RE-FLASH BACK TO ORIGINAL SOFTWARE.
  • STOCK DIVERTER VALVE REQUIRED, NO AFTERMARKET



Modded Euros Testing:

2015 Audi S3 Dyno Runs: Stock Vs Power Module:

*Note: All runs performed on a dynojet awd dyno, 92 octane with a cold air intake, Correction factor is set to SAE

Stock Dyno Run:

Max Power @ the wheels: 243.06

Max Torque @ the wheels: 251.79



Power Module Runs:

Max Power @ the wheels: 280.10

Max Torque @ the wheels: 289.89



Specs:

Power Gains

Two position switch

  • 91+ Premium Fuel / 5 PSI Increase
  • 100+ Octane Fuel / 7 PSI Increase

Power / Torque Gain

  • 1.8 TSI: 30+ HP /  55+ ft./lbs.Torque
  • 2.0 TSI: 35+ HP /  70+ ft/lbs.Torque

MK7 GTI Dyno Run with Power Module

How It Works:

Increases boost by modifying the charge pressure and map sensor readings

  • Allows ECU to remain in control of boost
  • The actual boost is increased by a precise amount
  • Boost is increased in a gradual, progressive fashion
  • Uses the closed loop control of the ECU to increase boost

Readings in the vacuum region are stock

  • No effect on cold start
  • No effect on warm-up
  • No change to idle, cruise and moderate acceleration modes of operation

Retains stock ECU programming

  • No change to factory ECU programming, communication or safety protocols
  • No ECU TD1 code to void manufactures warranty
  • Not effected by ECU reprogramming by the dealer
  • Makes use of existing ECU programming for higher boost levels
  • Correct Air/Fuel mixture maintained from the wide band O2 and closed loop mode of the ECU
  • Ignition timing optimized by the ECU

Installation

  • Plug-and-play intercept at Boost and MAP sensor connector locations
  • Installation or removal can be completed in a few minutes
  • No trace Power Module was ever there after removal
  • Power Module can be sold or installed on another vehicle of the same engine type.
Product Features

  • Plug-and-play
  • Installation or removal can be completed in a few minutes
  • Allows ECU to remain in control of boost
  • 1.8 TSI: 30+ HP /  55+ ft./lbs.Torque
  • 2.0 TSI: 35+ HP /  70+ ft/lbs.Torque

installation
warranty

As your assurance of the quality of its Products, Automotive Performance Systems, Inc. ("APS"), offers the following limited warranty, applicable in the U.S.A. and Canada only:

Limited Warranty. APS warrants to the original retail purchaser who retains ownership of the vehicle on which the Product was originally installed (the “Consumer”) all of its Neuspeed products. Standard APS products carry a 1 year warranty against manufacturing and/or material defects, unless stated otherwise on individual product listing on this website.

Exclusions from Warranty. This warranty shall not apply to any Product that was not properly installed by a qualified, licensed auto mechanic experienced in the installation of the Product purchased, any Product that was improperly serviced, or any Product that was misused or damaged (if such damage did not result from a Product defect or malfunction). This warranty shall not apply unless the Consumer promptly discontinues use of the Product upon discovery of the defect or premature wearing.

THIS WARRANTY DOES NOT APPLY TO ANY PRODUCT THAT HAS BEEN: (1) MODIFIED, ALTERED OR SUBJECTED TO ABUSE, NEGLIGENCE, ACCIDENT OR COLLISION; (2) IMPROPERLY INSTALLED ON ANY VEHICLE FOR WHICH IT WAS NOT DESIGNED; (3) INSTALLED ON ANY VEHICLE THAT HAS BEEN MODIFIED; (4) INSTALLED ON ANY VEHICLE THAT HAS CARRIED LOADS IN EXCESS OF THE AUTOMOBILE MANUFACTURER’S SUGGESTED WEIGHT LIMITS; (5) INSTALLED ON ANY VEHICLE THAT HAS BEEN USED FOR RALLYING, RACING, RACING-TYPE ACTIVITIES OR OFF-ROAD USE; OR (5) PRESENTED FOR WARRANTY COVERAGE AFTER BEING USED ON A VEHICLE OTHER THAN THE VEHICLE ON WHICH IT WAS ORIGINALLY INSTALLED.

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE), THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. ANY IMPLIED WARRANTIES ARE DISCLAIMED TO THE FULLEST EXTENT PERMITTED BY LAW. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL APS, ITS DIVISIONS, EMPLOYEES, AND AFFILIATES BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST PROFITS, LOSS OF USE OF VEHICLE, REVENUE, SALES, OR COSTS OF PROCUREMENT OF SUBSTITUTE GOODS, PROPERTY DAMAGE, INCLUDING WITHOUT LIMITATION DAMAGE TO VEHICLE OR COMPONENT PARTS, PERSONAL INJURY, INTERRUPTION OF BUSINESS, OR FOR ANY DIRECT, INDIRECT, INCIDENTAL, ECONOMIC, COVER, AND PUNITIVE DAMAGES, RESULTING FROM POSSESSION, USE OR MALFUNCTION OF THE PRODUCT, EVEN IF APS HAS BEEN ADVISED OF THE POSSIBILITY OF THOSE DAMAGES. SOME STATES DO NOT PERMIT THE EXCLUSION OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TO THE EXTENT THAT A STATE DOES NOT ALLOW AN EXCLUSION OF LIABILITY BUT ALLOWS A LIABILITY TO BE LIMITED, THE LIABILITY OF APS, ITS DIVISIONS, EMPLOYEES AND AFFILIATES SHALL BE LIMITED TO THE PURCHASE PRICE OF THE PRODUCT.

THIS WARRANTY GIVES THE CONSUMER SPECIFIC LEGAL RIGHTS. THE CONSUMER MAY HAVE ADDITIONAL RIGHTS THAT MAY VARY FROM STATE TO STATE.

This warranty information and the specific warranty information included with the Product constitutes the entire agreement between APS and Consumer and exclusively determines the rights and obligations of the parties, any prior course of dealing, custom or usage of trade, or course of performance notwithstanding, and supercedes all prior agreements and understandings, whether oral or written.


Fitment Guide

Does this fit my vehicle?
Fitment Guide
×

Fitment Guide

Start Year End Year Make Model Submodel Cyl Lit Fuel FuelDel ASP EngDesg Notes
2015 2016 AUDI A3 CABRIOLET PREMIUM
CABRIOLET PREMIUM PLUS
CABRIOLET PRESTIGE
PREMIUM
PREMIUM PLUS
PRESTIGE
L4 1.8 GAS FI T ALL
2015 2017 AUDI A3 QUATTRO CABRIOLET PREMIUM
CABRIOLET PREMIUM PLUS
CABRIOLET PRESTIGE
PREMIUM
PREMIUM PLUS
PRESTIGE
L4 2.0 GAS FI T ALL
2017 2017 AUDI A4
A4 allroad
A4 QUATTRO
PREMIUM
PREMIUM PLUS
PRESTIGE
ultra PREMIUM
ultra PREMIUM PLUS
L4 2.0 GAS FI T ALL
2018 2018 AUDI A5 QUATTRO CABRIOLET PREMIUM
CABRIOLET PREMIUM PLUS
CABRIOLET PRESTIGE
COUPE PREMIUM
COUPE PREMIUM PLUS
COUPE PRESTIGE
SPORTBACK PREMIUM
SPORTBACK PREMIUM PLUS
SPORTBACK PRESTIGE
L4 2.0 GAS FI T ALL
2016 2017 AUDI A6
A6 QUATTRO
PREMIUM
PREMIUM PLUS
L4 2.0 GAS FI T ALL
2015 2017 AUDI S3 PREMIUM PLUS
PRESTIGE
L4 2.0 GAS FI T ALL
2016 2017 AUDI TT QUATTRO BASE
COUPE
ROADSTER
S
L4 2.0 GAS FI T ALL
2015 2017 VOLKSWAGEN GOLF R L4 2.0 GAS FI T ALL
2015 2017 VOLKSWAGEN GOLF LAUNCH EDITION
S
SE
SEL
TSI
WOLFSBURG EDITION
L4 1.8 GAS FI T ALL
2017 2017 VOLKSWAGEN GOLF ALLTRACK S
SE
SEL
L4 1.8 GAS FI T ALL
2015 2017 VOLKSWAGEN GOLF SPORTWAGEN S
SE
SEL
S 4MOTION
L4 1.8 GAS FI T ALL
2015 2017 VOLKSWAGEN GTI AUTOBAHN
S
SE
SPORT
L4 2.0 GAS FI T ALL

Customer Reviews

5 / 5 Avg. Rating
Write a Review
  • Worth the money

  • Great Device that Works as Advertised

    I have had this power module installed on my A3 quattro 8v for approx. 8000 miles. It definitely makes a noticeable power increase. I have only used it in the 5 psi setting with 93 octane so I can't comment on how it performs on the 7 psi setting or different octane levels. I recently took it off before going to the dealer and missed the power. The dealer did not flag me or say anything about the engine or ecu and I put the device back on 2 days later. It is kind of a pain to put the device on for the A3 8v because you really do need to remove the under shield panel to get to the lower sensor. You can do it without going under the car, as I have seen videos but the risk of breaking plugs would greatly increase. Also on cold days the car needs a minute or two to warm up or else it will bog down when trying to accelerate past 2000 rpm. It's probably good practice to let the engine warm up on cold days anyway. My car did not behave this way when the device was removed so it is related to the power module. Other than those two issues I love this device. Gas mileage remains the same.

  • Amazing simple product

    Really does make a difference in car performance. I have a 2015 1.8 Golf. Awesome that something so simple can give a car a new feel. Highly recommend. Here from San Antonio Tx!!!

  • So sweet

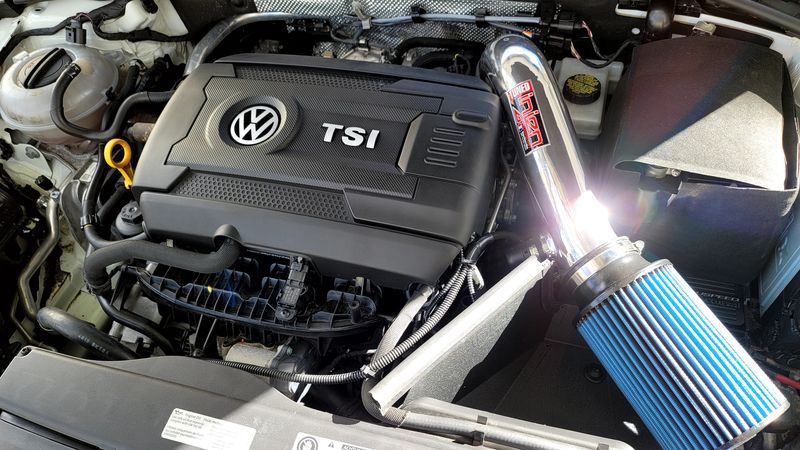

    Have had the module in my GTI for a month now, wow, awesome!! Better than factory drive ability, and way more power. Car is otherwise completely stock. I have a cold air intake arriving next week. For me the purpose of the intake is for better sound, I don't expect much more power, that's OK with me.

    The Neuspeed Module has made me fall in love with my GTI all over again. This module makes the car exactly how it should be from the factory.

    But it and enjoy. Cheers!!!

  • Very Nice

    A nice boost for a nice price. Was fairly easy to install, even for this noob. Plus the warranty on my new car is still intact. Just enough power to put a smile on my face when I put down the hammer!

  • I own a 2016 VW GTI with the track package and manual transmission. The only thing the car lacked was as little more power as it was not up to the vehicle dynamincs. I looked around and decided to purchase the Neuspeed Power Module as it was cheap (relatively) and could easily be installed/removed. While there are only 2 connectors to attach to the engine sensors,the lower one is a bit difficult as it cannot be seen from the top of the engine. I had to do it by feel. Those with short or large arms will likely have to remove the engine plastic engine pan to get at it. Anyway, I am very happy with the results. You can feel a real difference in the power and the engine remains as smooth and tractible as before. I haven't checked the mileage yet, but it doesn't seem to have suffered much at least in everyday driving.

  • 4/5

    Love the thing, makes your car very noticeably faster. Only issue is i get turbo spool but at the top of it spooling up it flutters and then it goes quiet but there's no loss of power. Have no idea if its bad or not. 1000 miles in and it still works just fine. Just keep this in mind.

  • Great Product

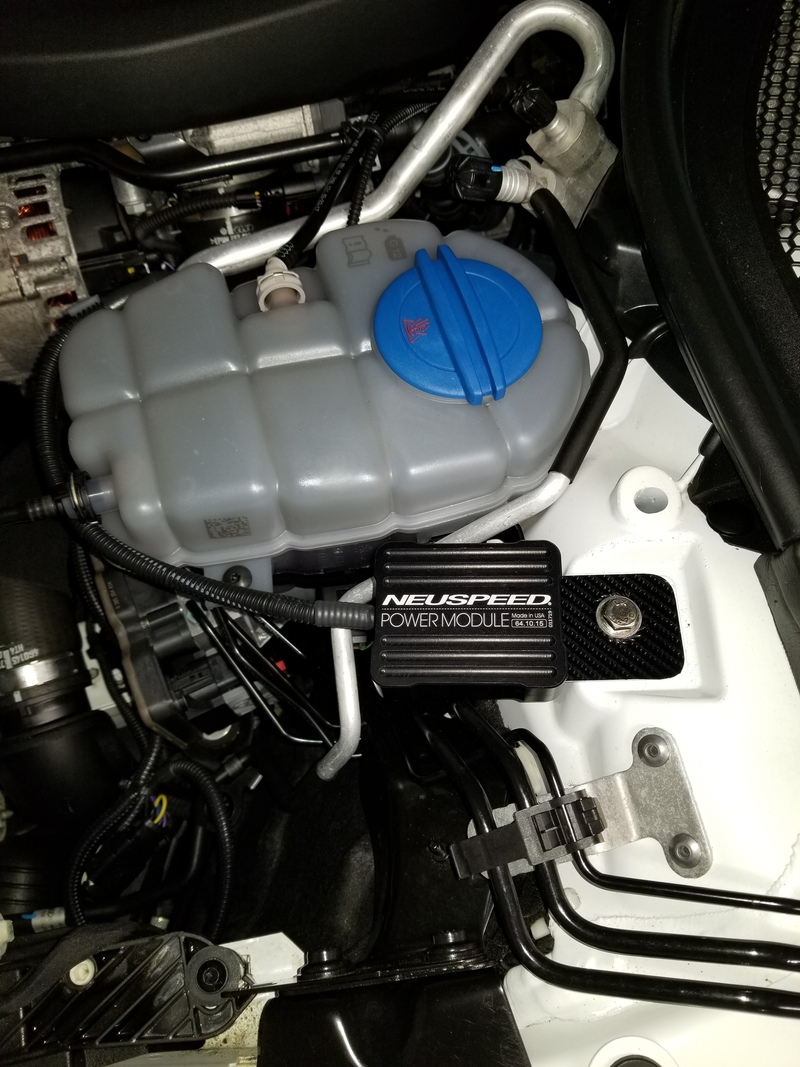

    I have had this installed on my 15' S3 for a few weeks. I would definitely recommend this product to anyone who wants that extra power without going the full tune route. This product gives you that extra kick that most stock cars miss on. Under light to normal loan the car feels basically the same. I can feel some extra throttle response with normal driving. When you floor it WOW! Power and more power all the way through redline. Install was easy and product was shipped very quickly.

  • Quick before, fast now....

    I thought my '16 GTI was a quick car, but not a fast car.
    Neuspeed power module made it an 'almost fast' car.
    I have not timed 0-60, but it felt about a half second faster reaching freeway speed.
    Not a bad purchase for someone who wants moderate power increase without losing the warranty.
    I only hope it does not decrease the long term reliability of the car.

  • This thing is AWESOME !!!!!!

    installed the unit , took no more than 10 min. considering the lower cover on the s3. Drove the car for 25 miles just to be safe. Cycled the ignition after test drive and BAM -
    power , power and more power. To be honest I really expected this thing to be a joke , more of a slight kick in the pants but nothing to write home about. Its easy , it works and good luck finding the kind of power and pull through the torque band for less than $400.00 smackers. * note * for DSG cars the gear box will wig out the first drive cycle. Turn it off and back on - everything is good to go !!!!!

  • really feel a different in my 2015 GTI. car really hauls ass now

  • definitely noticed a difference in acceleration, Highly recommend.

  • Big O

    Two words... Adrenaline Rush!!!!

  • Car pulls a lot harder now. Would def buy this again

  • Didn't want to get an ECU tune because of the TD1. Was excited to see this finally gen launched after watching everyone talk about the version for other models. Installed this pretty quick and love it. Car feels completely different. Nice plug and play mod.
